1. INTELLIGENT DESIGN FOR YOUR PROFESSIONAL CHOICE

   1.1 The innovative and versatile autoclave which combine compact and elegant design with high performance , reliability and safety

   1.2 Intelligent design sterilization programme with pre - vacuum and dry- vacuum

   1.3 Installed twenty -four (24) programme and special p[rogramme for PRION sterilization , RE-DRY (Liquid), BOWIE -DICK test , PUMP test programs for your selection.


2. Pre- vacuum function : Offer the execellent sterilization result . (Pass the BOWIE -DICK test with AAMI guideline )
3. Dry - vacuum function : To offer the perfect dry result .
4. Microprocessor control system : Fully automatic control from pre - Vacuum to dry
5. Automatic add water into the chamber after first cycle pmvacuum.
6.  Dual water level check device: One for water tank, and the other for chamber water level check.
7.  Pressure door auto-lock device: The door can't be opened, when chamber pressure is over 0.2 kgf /cm2 .
8. Door open indication: Indicates the chamber door is open or not closed fully.
9. Cycle complete indication: Auto-check each working steps condition. The "COMPLETE" indicator will light on, if full cycle in correct condition.
10. Low water alarm and indication: If water isn't enough, the "LOW-WATER" indicator will light on, and alarm you.
11. Proheating program: Pre heating by dry heater, which is not only keep the chamber temperature in balance, but also to offer the perfect dry function".
12. Temperature control function: Temperature control in sterilization cycle, and temperature protection to each heater by separated devices.
13. Chamber pressure with double protection: The chamber is protected by pressure switch and steam pressure safety valve.
14. Emergency key device: Press "EMERGENCY" Key 3 seconds will stop program and exhaust the chamber pressure at the same time.
15. RE-DRY: Standalone program which can be used separate from the standard sterilization programs. The unique dry performance keeps your instruments in good condition and prolongs their lives.
16. Specie| PR|ON sterilization program,
17. Special BOWIE-DICK test program: The users can identify the perfect sterilization function with this program.
18. The "ERROR" indication, to help the users and engineers to Dnd the function problem automatically.
19. LIQUID steHlization program: It is a special program designed for laboratories


*Re-Dry for SA-3OOMA only. LIQUID for SA-3OOVMA only.

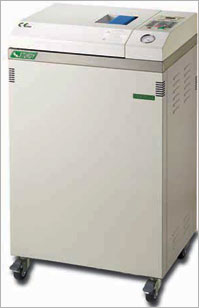

Vertical Type Automatic Sterilizer 50 Liter SA 300 VFA

FEATURES:
INTELLIGENT DESIGN FOR YOUR PROFESSIONAL CHOICE:



• A New patented unique swing door designation, easy for door open/close and safety.

• A The innovative and versatile autoclave which combines compact and elegant design with high performance is reliable and safe. With auto-dry function, it offers great dry result.

• Auto-chamber water level check, when you START the program.

• Pressure door auto-lock device. The door can't be opened, when chamberpressure is over 0.2 kgf/cm2.

• Door close indication: All functions stop, if the door isn't securely closed.

• Cycle complete indication: The "COMPLETE" indicator will light-on, if full cycle is in a correct condition.

• Low water alarm and indication: If water isn't enough in the chamber, the "LOW WATER" indicator will be illuminated with buzzer.

• Pre-heating program: Pre-heating by dry heater not only keeps the chamber temperature homogenized, but also offers the good drying result.

• Independent temperature protection switch offers double safety system.

• LIQUID sterilization program: It is a special program designed for laboratories.


MODEL NO.	SA-300VFA
Product name	(CLASS-S) Vertical TYPE AUTOCLAVE STERILIZER
Overall dimensions (mm)	600 (W) x 980 (H)x 450 (Dep.)
CONSTRUCTION	Chamber & Door: Stainless Steel #304
Net weight	81 kg
Chamber size (mm)	(I) 300 (Dia.) x 710 (Dep.)
Chamber capacity	50 Liter
Capacity of water tank	N/A
Water consumption per cycle	1000-1200 cc
Power supply	230V 50/60Hz
Power consumption	2900W / 13 Amp, Heater 2300W, Dry Heater 600W
Standard accessories	ST. ST. 304 Sterilization Basket x 2, Heater Cover x 1, 2000cc Bottle x 1, Clip x 1, Exhaust Hose x 2
	Size of Basket: 0 250 (Dia.) x 251 (H) / mm
Certificate	CE 0434 MDD, CE 0575 PED
FEATURES
• Fill Water System	Auto-Fill water system
• Pressure Display	Pressure Gauge
. Program (Function) Display	LED Display
• Indicator Light	Power, Add-water, Heat, Ster., Exhaust, Dry, Complete, Door Closed, Low Water,
	Overheated / Over pressured
• Program For Selection	121°C / 135°C, Wrapped / Unwrapped, Dry / Un-dry, Liquid
• Sterilization Temp. Selection	121°C / 135°C
• Dry Function	Auto-Dry function, Dry time 30 MIN.
SAFETY DEVICE
• Pressure Safety Valve	Setup to 2.6 kg f/crin2
• Over Pressured Protection	Pressure Protection Switch x 1
• Overheated Protection	Independent Temp. Protection Device W/ Warning LED
• Electric overload protection	20 amp no fuse breaker x 2
• Door lock	Micro switch sensor w/ warning LED
• Pressure door auto-lock	Yes
• Chamber water level	Water level sensor operating during " add water" phase (in 5 minutes) w/ warning led
• Vacuum Release switch	Yes
Life Time	7 Years
