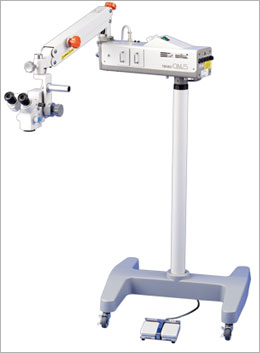

Operating Microscope Step |
|
|
|
Fusing image facility
With use of the converging optics with
visual axis slanted by 6 degrees inward,
the fusing image has been made feasible
for a doctor claimed for diplopia so far
and even for a beginner for microscope.
It has become suitable eye positioning
for operation. |
|
| |
|
High resolution and three
magnification changes
The drum type magnification changing
system enables a high resolution for
total magnifications of 4.6x, 7.7x and
12.3x and furthermore the dial type P.D.
adjustment mechanism, that is firstly
available on this grade of microscope, a
reasonable operating circumstances are
permissible. |
|
| |
|
|
Motor driven focusing mechanism
By aid of foot switch operation, a
maximum of 30mm focusing adjustable by
motor driven focusing mechanism so it
can be made just focus to the portion
desirable to see. |
|
| |
|
The original balance arm mechanism
Taking advantage of the original balance
arm mechanism extending up to the
maximum stroke of 400mm, the operation
microscope can be moved the most
suitable position with Zoom and movable
fixture smoothly and coordinating by
manual operation to any optional
establishment and quickly adjustable for
arm balancing adjustment. |
|
| |
|
Cold light coaxial illumination
Cold light coaxial illumination with a
high intensity 150W halogen lamp and
light guide is adopted. Not only the
coaxial illumination on the main, even
the slit illumination to establish the
optional illumination is adjustable
steplessy upto its most suitable
brightness.
Cobalt blue and green (red-free) filters
are built-in.
Thanks to its built-in spare lamp unit
even when the lamp bulb in use is burnt
out, it can be replaced swiftly. |
|
| |
|
|

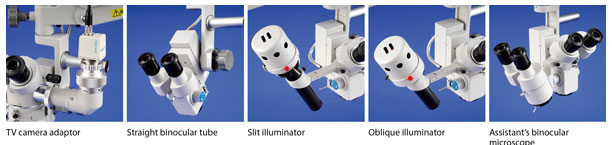

Wide array of optional components |
|
 |
|
|
|
